12.8V 50AH Lithium PVC Wrap Battery

12.8V 50AH Lithium PVC Wrap Battery | Lithium Battery Company

Add To Quote
Weight 15.81 lbs
description_tag

Discover the 12V 50AH Lithium PVC Wrap Battery, a high-quality power solution with extended longevity. Ideal for consistent performance with its durable lithium-ion core.
Brand

UPC

647535543444
SKU LBC50PVC Category Tags , , , , , ,

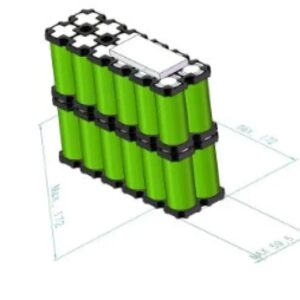

12V 50AH Lithium PVC Wrap Battery

Discover the 12V 50AH Lithium PVC Wrap Battery, a high-quality power solution designed for extended longevity and consistent performance. This battery features a durable lithium-ion core, making it ideal for various applications requiring reliable power. With a nominal voltage of 12.8V and a capacity of 50AH, it delivers a powerful and efficient energy solution. Its compact dimensions (10.47″ x 4.57″ x 2.95″) and weight (15.81 lbs) make it easy to handle and install. Encased in a robust PVC wrap, it is built for durability and long-term use.

Specification Details
Nominal Voltage 12.8 V
Nominal Capacity 50 AH
Energy 640 Wh
Efficiency 99%
Maximum Continuous Discharge 40 A
Peak Discharge Current 80 A (7.5 s ±2.5 s)
Discharge Over Current 170 A ±20 A (20 ±5 ms)
Discharge Temperature -4 to 140 ºF (-20 to 60 ºC)
Charge Temperature -4 to 113 ºF (-20 to 45 ºC)
Recommended Storage Temperature 23 to 95 ºF (-5 to 35 ºC)
BMS High Temperature Cut-Off 176 ºF (80 ºC)
Reconnect Temperature 122 ºF (50 ºC)
Balancing Voltage 14.4 V (3.6 ±0.025 vpc)
Reconnect Voltage 15.2 V (3.8 ±0.05 vpc)
BMS Charge Voltage Cut-Off 15.6 V (3.9 ±0.025 vpc)(1.2 ±0.3s)
Recommended Charge Voltage 14.2 V – 14.6 V
Maximum Charge Current (4 to 14 ºF) ≤0.05 C
Maximum Charge Current (14 to 32 ºF) ≤0.1 C
Recommended Charge Current 5 A – 50 A
Cell Type/Chemistry Cylindrical – LiFePO4
Case Material PVC Wrap
Internal Resistance ≤30 mΩ @ 50% SOC
Self-Discharge Rate <3% per Month
Short Circuit Protection 200-600 µs
Capacity at 25A 120 min
Enclosure Protection IP66 – Upgrade Available
Certifications UN38.3 (battery), CE (battery), UL1642 (cells) (File# MH62098), IEC62133 (cells)
Shipping Classification UN 3480, CLASS 9
Terminal Type Customizable
Terminal Torque Customizable

Key Features

  • High Efficiency: 99% efficiency ensures minimal energy loss.
  • Reliable Performance: Provides 50AH capacity with a reliable 12.8V nominal voltage.
  • Safety and Protection: Features short circuit protection, high temperature cut-off, and discharge over current protection.
  • Durable Construction: Encased in a robust PVC wrap for enhanced durability.
  • Compact and Lightweight: Easy to handle and install with dimensions of 10.47″ x 4.57″ x 2.95″ and a weight of 15.81 lbs.
  • Certifications: Complies with international safety and quality standards (UN38.3, CE, UL1642, IEC62133).

Applications

  • Renewable Energy Systems: Ideal for solar power storage and other renewable energy applications.
  • Electric Vehicles: Suitable for electric cars, bikes, scooters, and other EVs.
  • Medical Devices: Reliable power source for critical medical equipment.
  • Industrial Equipment: Can be used in various industrial machinery and applications.
  • Consumer Electronics: Powers a range of consumer electronic devices.
