10.8V 5AH NCM Battery

Weight	0.66 lbs
nominal_voltage1	10.8V
nominal_capacity1	5 AH
length_in_	2.95 In
width_in_	2.59 In
height_in_	0.86 In
weight_lbs_	0.66 Lbs
continuous_charge_current	3A
continuous_discharge_current	1A
efficiency1	99%
energy1	54 WH
maximum_continuous_discharge	3A
peak_discharge_current	3A
Brand	LITHIUM BATTERY CO

SKU LBC10.85 Category 12V PVC Lithium Batteries

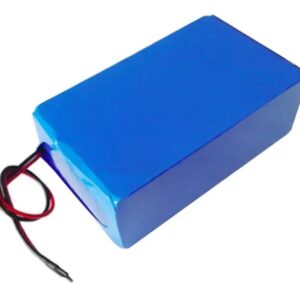

LBC 10.8V 5AH Battery Pack

The LBC 10.8V 5AH Battery Pack is a high-performance battery solution designed for applications requiring reliable and efficient energy storage. With its advanced lithium-ion chemistry, this battery pack offers superior safety, long cycle life, and excellent low-temperature performance.

Specification	Details
Nominal Voltage	10.8V
Nominal Capacity	5Ah
Standard Charging Current	1A
Max. charge current	3A
Standard Discharging Current	1A
Max. Discharge Current	3A
Working voltage range	8.1V ~ 12.6V
Standard Charging Method	CCCV
Overcharge Protection Threshold	4.30V/cell
Over Discharge Protection Voltage Threshold	2.40V/cell
Over Discharge Current Protection	About 8A
Balance Start Voltage/Balance Current	/
Short Circuit Current Protection Function	OK
Over Temperature Protection Threshold	/
Communication protocol	/
Cycle Life	500 cycles 80%
Product Size	MAX 75mm66mm22mm
PACK assembly way	PVC
Charge Type of output	ABD
Discharge Type of output	Wire
Type of output wire	UL3239-18#
Output wire length	200±20
Product Weight	About 0.3Kg
Charging Temperature	0℃ ~ 45℃
Discharging Temperature	-20℃ ~ 60℃
Storage Temperature	1 month: -10℃ ~ 50℃ 3 months: 0℃ ~ 30℃ One year: 20℃ ~ 25℃
Relative Humidity for Storage	5% ~ 95% RH
Cell Certification	UL1642/UL1973
Quality Assurance Period	3 years

Key Features

High Capacity: With a nominal capacity of 5Ah, this battery pack provides substantial energy storage.
Robust Protection: Features overcharge, over-discharge, over-discharge current, and short-circuit protection.
Safety Certifications: Complies with UL1642/UL1973 safety standards.
Customizable Design: Available in various sizes and configurations to meet specific application needs.

Applications

Electric Vehicles: Ideal for powering electric vehicles with specific energy requirements.
Energy Storage Systems: Suitable for renewable energy storage solutions.
Industrial Equipment: Provides power for industrial applications with specific energy needs.
Backup Power: Serves as a reliable backup power source for critical systems.
Telecommunications: Used in telecom equipment for uninterrupted power supply.
Marine Applications: Powers marine equipment and electric boats with custom power solutions.
