48V 30Ah LiFePO4 Battery Pack for Golf Car & LSV OEMs

Name: 48V 30Ah LiFePO4 Battery Pack for Golf Car & LSV OEMs
Brand: Lithium Battery Company
SKU: LBC4830C
Availability: InStock

LBC LBC4830C is a 51.2V 30Ah LiFePO4 OEM battery pack with BMS included. Catalog energy: 1536Wh. Dimensions: 425×415×250mm. Catalog programs start at 10 units; custom designs at 25. OEM delivery serves the United States, Canada, and Mexico. Confirm equipment fit, charging and lead time with LBC.

LBC4830C

LFP · 1,536 Wh (nominal)

48V 30Ah LiFePO4 Battery Pack for Golf Car & LSV OEMs. Review the program specification, then request engineering, supplier qualification, quality planning, and managed volume-production support.

Get a quote for this pack

Catalog from 10 units · Custom from 25.

Need a different size or shape? Customize this pack

Reference Design · Volume Program · 10-unit catalog minimum · Final specification confirmed in RFQ

BMS: Included
Approx. weight: 39 lbs

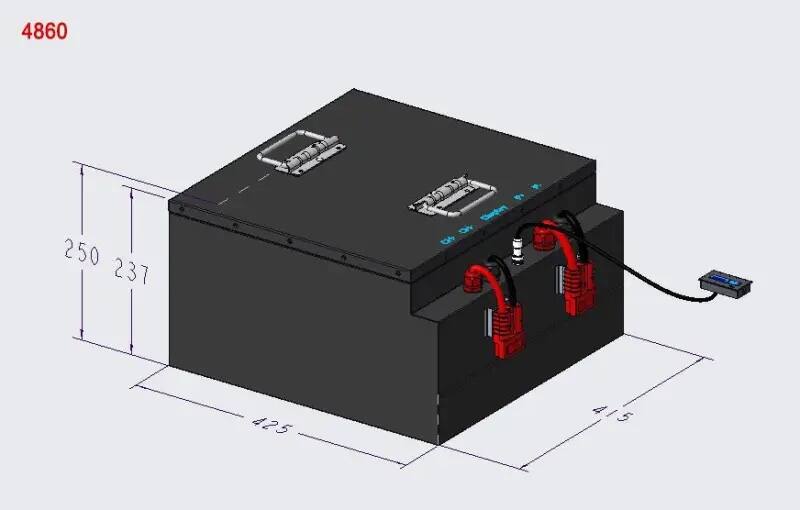

Dimensions: 425 × 415 × 250 mm · 16.73 × 16.34 × 9.84 in
Temp range: -4 to 140 ºF (-20 to 60 ºC)

Review related AGV/AMR, UAV, telecom backup and energy-storage requirements with LBC. Request an application-specific design review.

Battery program specifications

This program example is a starting point for an engineered battery system, for a volume OEM program. LBC reviews the electrical load, runtime, environment, charging method, communications, enclosure, compliance needs, first-order quantity, and annual volume before confirming a qualified production path.

48V-class 30Ah LiFePO4 battery pack (51.2V, 1.5 kWh) for golf car, low-speed vehicle (LSV) and utility-vehicle manufacturers and integrators. We match the BMS, current limits, connectors, communications and enclosure to your motor controller, charger and vehicle platform, then build to your production schedule. Catalog quantities start at 10 units and custom vehicle packs at 25 units. We don't sell single replacement batteries.

Catalog programs begin at 10 units. Custom changes and new battery designs begin at 25 units. LBC quotes volume OEM programs.

SKU: LBC4830C
Chemistry: LFP
Voltage: 51.2 V
Capacity: 30 AH
Energy: 1,536 Wh (nominal)
Dimensions: 425 × 415 × 250 mm · 16.73 × 16.34 × 9.84 in
Weight: 39 lbs

Get pricing

Send your requirements for LBC4830C.

Specifications shown are reference values from the catalog record. Final electrical, mechanical and safety requirements are confirmed during project review.
